136812 - Silicon Bronze Nylon Insert Lock Nut - 1/2-13 UNC
136812 - Silicon Bronze Nylon Insert Lock Nut - 1/2-13 UNC
Regular price
$9.53 AUD
Regular price
Sale price
$9.53 AUD
Unit price
per
Tax included.
Couldn't load pickup availability

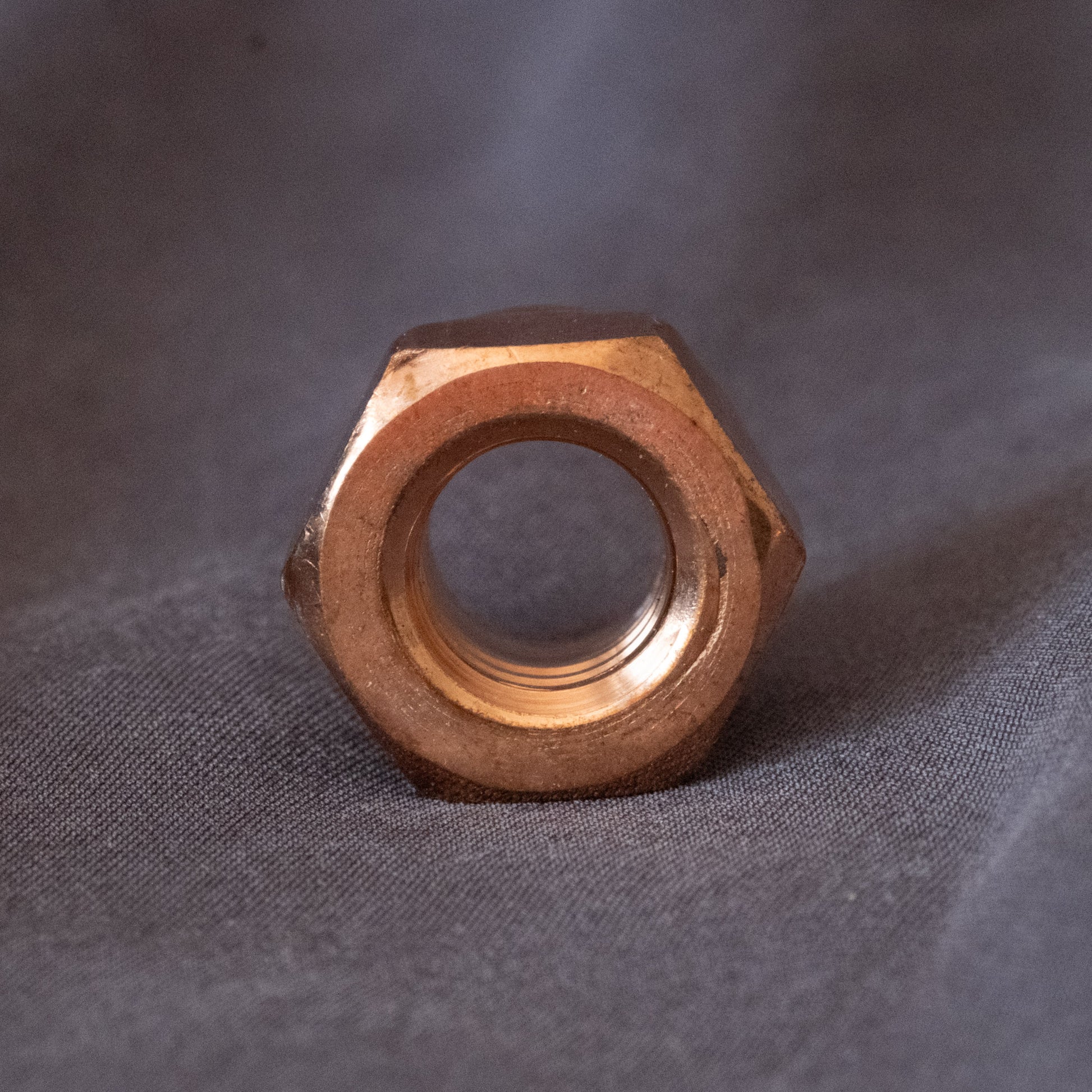

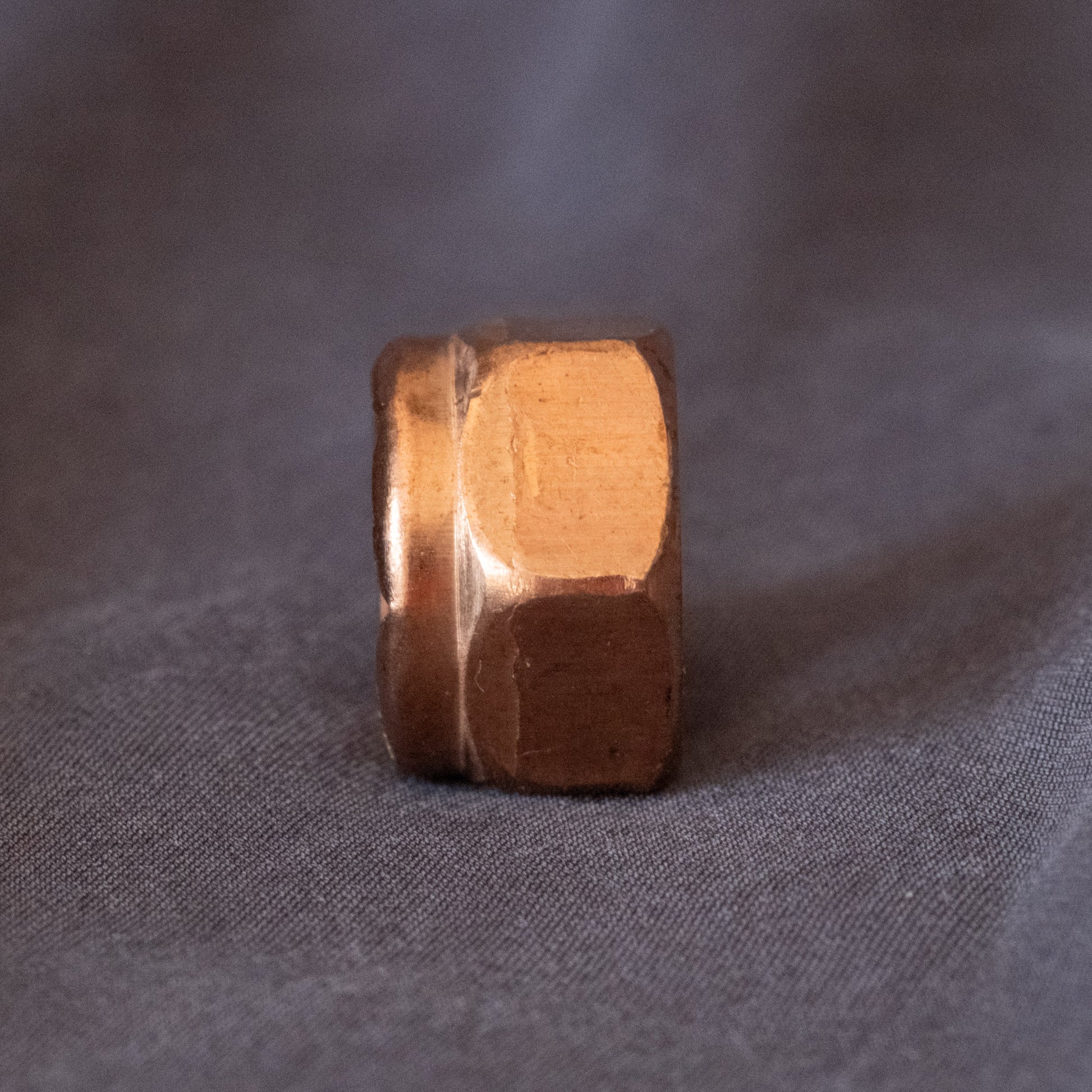

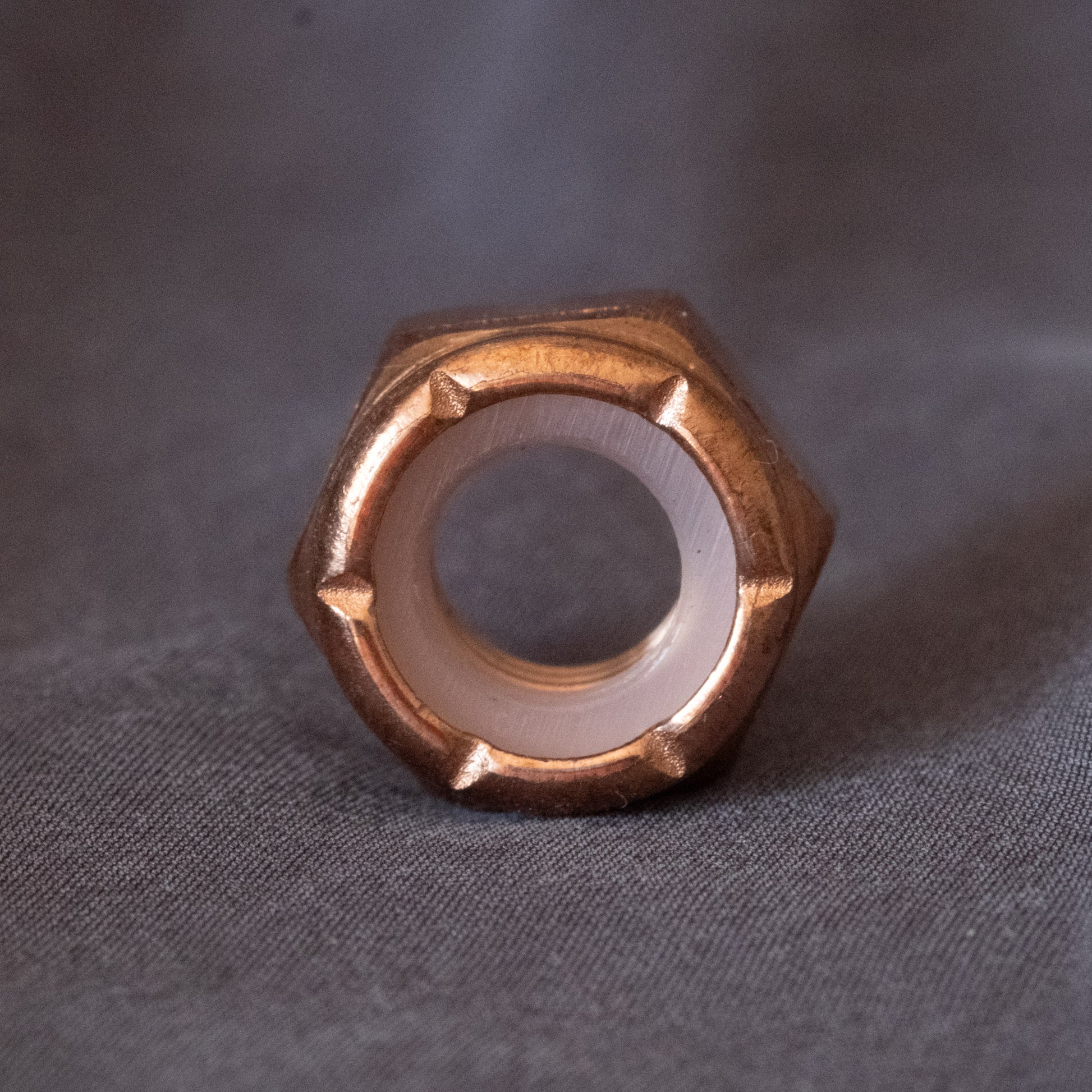

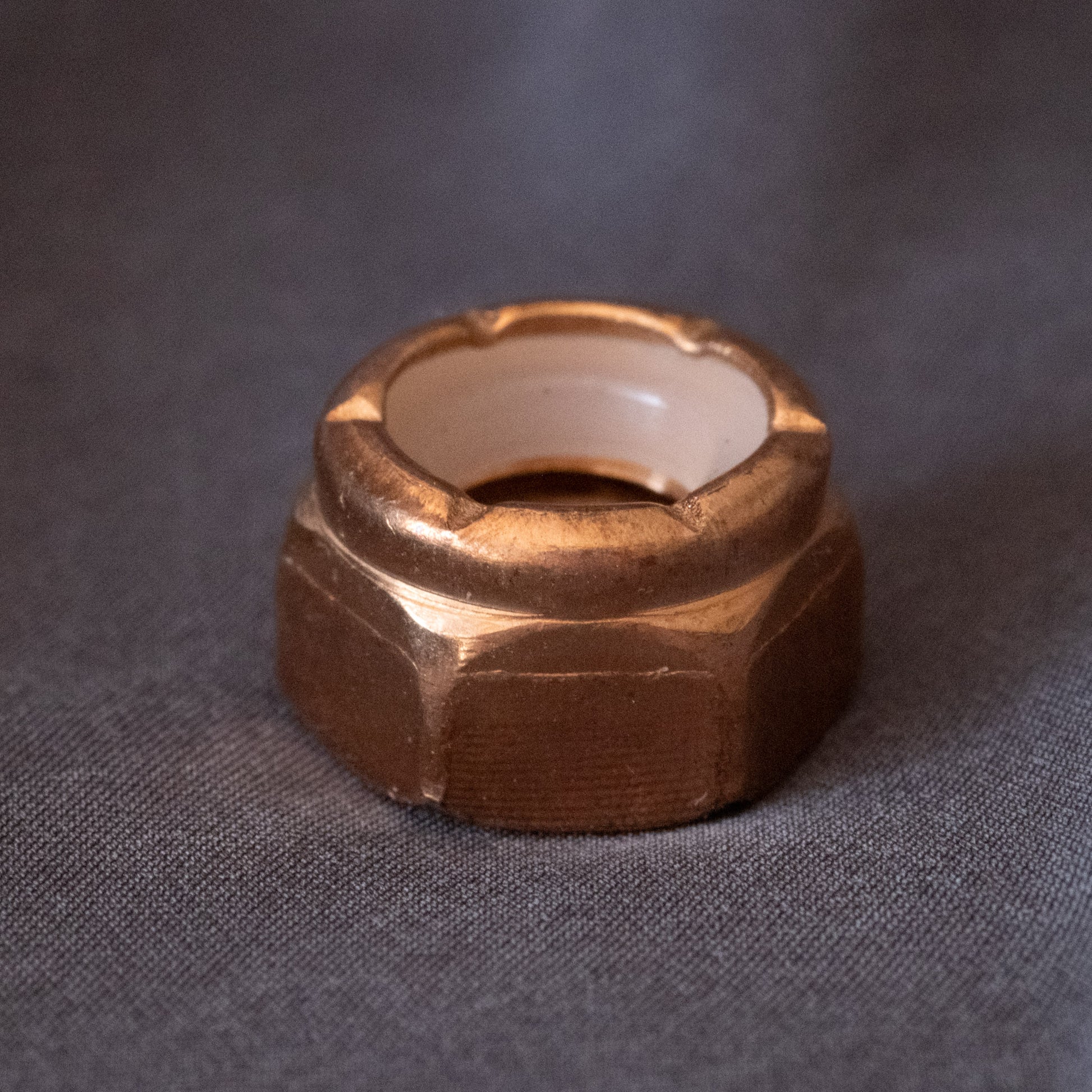

A solid Silicon bronze hex nut with a nylon locking insert that is slightly smaller in diameter than the screw, which 'locks' onto the thread when tightened.
Ideal in applications where vibration or motion could loosen or undo the nut. The nut can also be used to assist sealing the bolt thread against seepage of oil, water, petrol, paraffin and other liquids.
The side of the nut without the nylon ring is threaded onto the bolt first.
| AF / Spanner Size | 18.8 mm - 3/4" |
| Overall Height | 15mm |
| Hex Height | 12mm |
| Nylon Inside Diameter | 10.3mm |
| TPI | 13 |
| Metric Equivalent | M12 |
| Finish | Mill Finish |
| Material | Silicon Bronze |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
