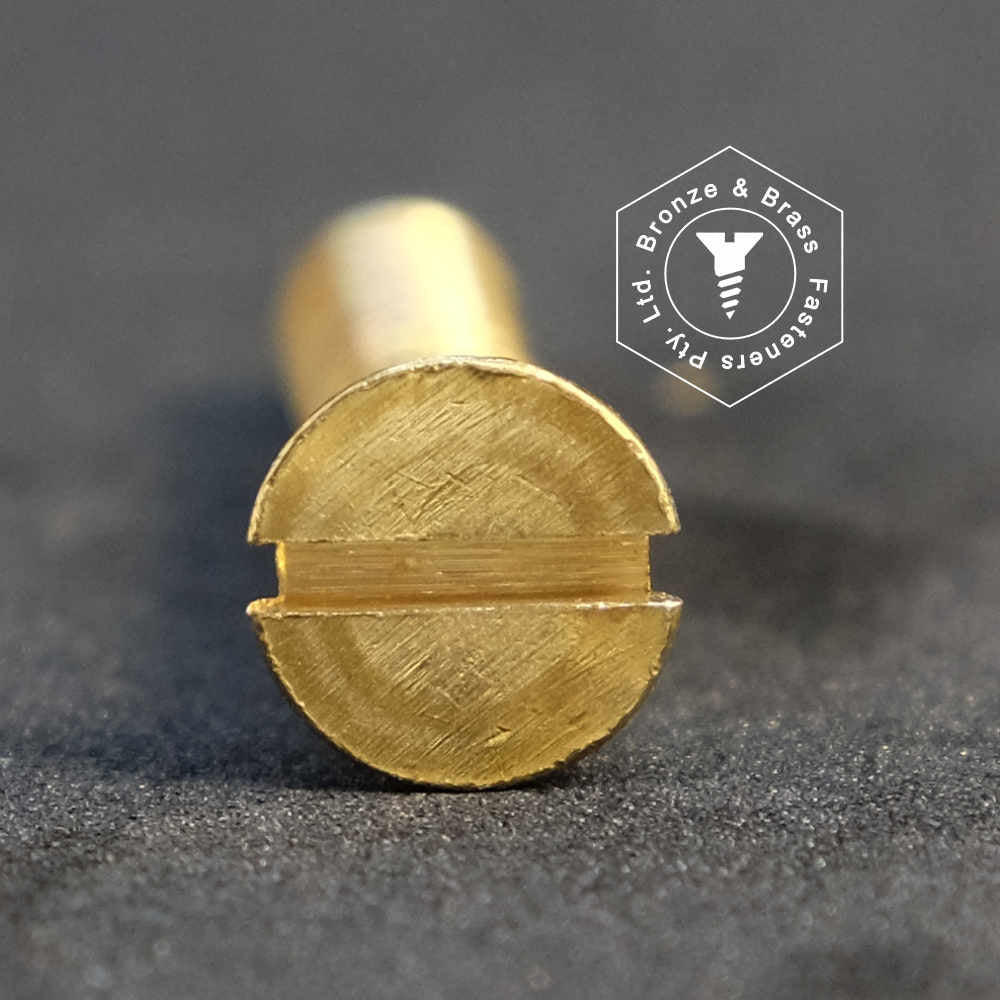

111073 - Brass Wood Screw Slotted Flat Head- 10g x 19mm
111073 - Brass Wood Screw Slotted Flat Head- 10g x 19mm
GST Excluded - added at checkout
Quantity discounts are added automatically in cart.
Couldn't load pickup availability
A traditional full bodied cut thread countersunk or flat head woodscrew made from solid high tensile 60/40 'Muntz metal' brass - designed to finish flush with the surface of your timber/hardware.
Brass has a yellow gold patina when new or polished. If allowed to age, it will developed a yellow hued brown tone, akin to antique brass, and is the recommended option for fastening antique brass hardware.
Screw Size Chart - Gauge: 10g
| Head Diameter: | 9.1mm |
| Head Height: | 3mm |
| Countersink Angle: | 82° |
| Shank Diameter: (major) | 4.7mm |
| Shank Diameter: (minor) | 3.3mm |
| Finish: | Mill Finish |
| Material: | Solid Brass |
| Major Pilot Hole: | 4.5mm |
| Pilot Hole Hardwood: | 3mm |
| Pilot Hole Softwood: | 3mm |
| Length: | 19mm - 3/4" |
Applications
| Fine Woodwork |
| Clocks |
| Musical Instruments |
| Non-magnetic |
How to measure this fastener:
| Head Diameter | Measured across the outside of the head at the widest point |
| Major Shank Diameter | Measured on the plain shank below the head |
| Minor Shank Diameter | Measured on the shank between the threads at tip |
| Length | Measured from the flat of the head to the tip |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
View full details
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
