112102 - Brass Needle Point Screw Slotted Flat Head- 10g x 32mm
112102 - Brass Needle Point Screw Slotted Flat Head- 10g x 32mm
GST Excluded - added at checkout
Quantity discounts are added automatically in cart.
Couldn't load pickup availability

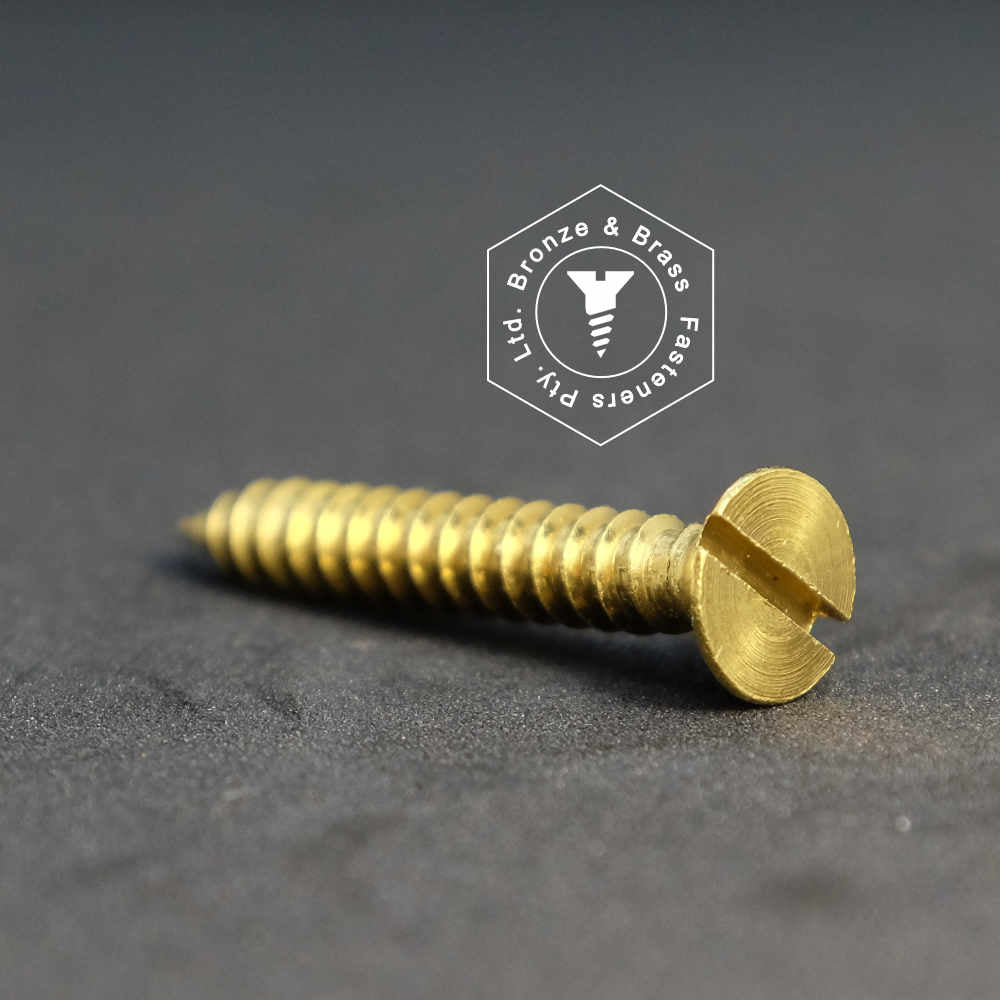

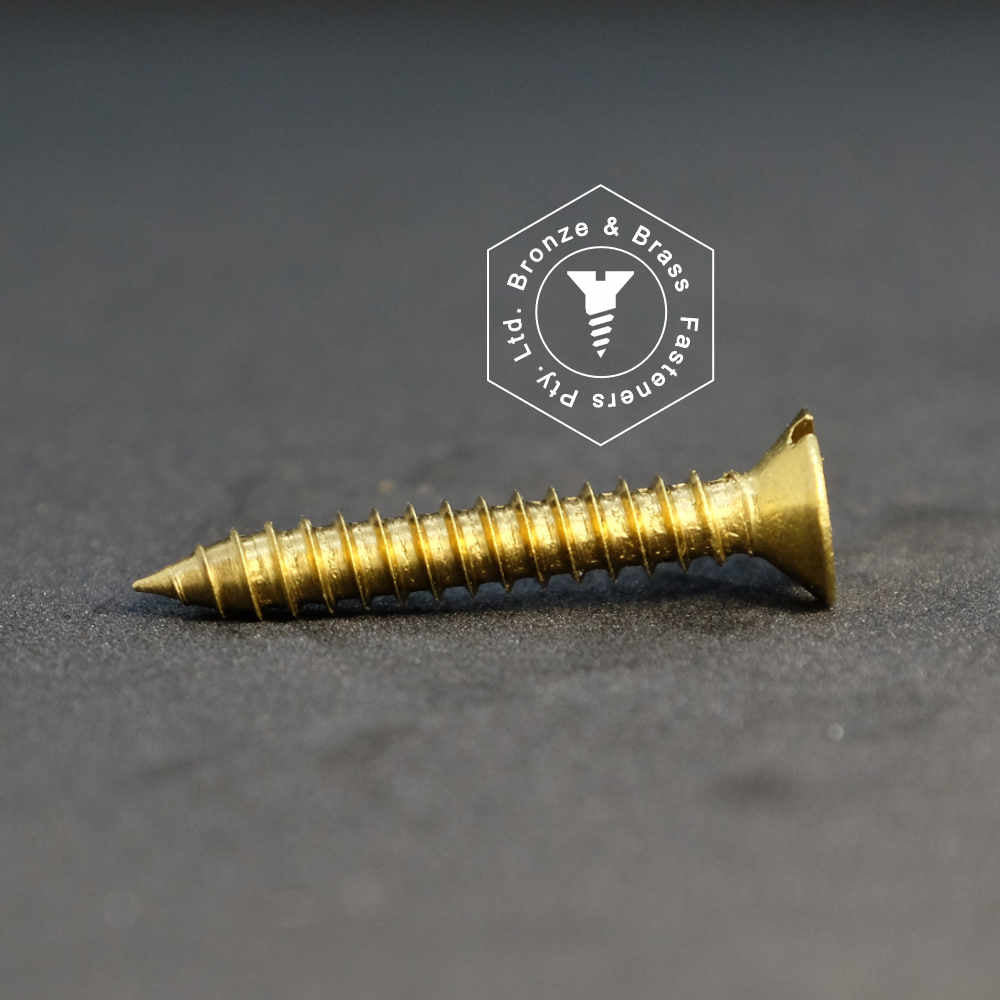

Full Rolled thread, needlepoint fine self tapping solid brass woodscrew with a traditional countersunk or flat head - designed to finish flush with the surface of your timber/hardware.

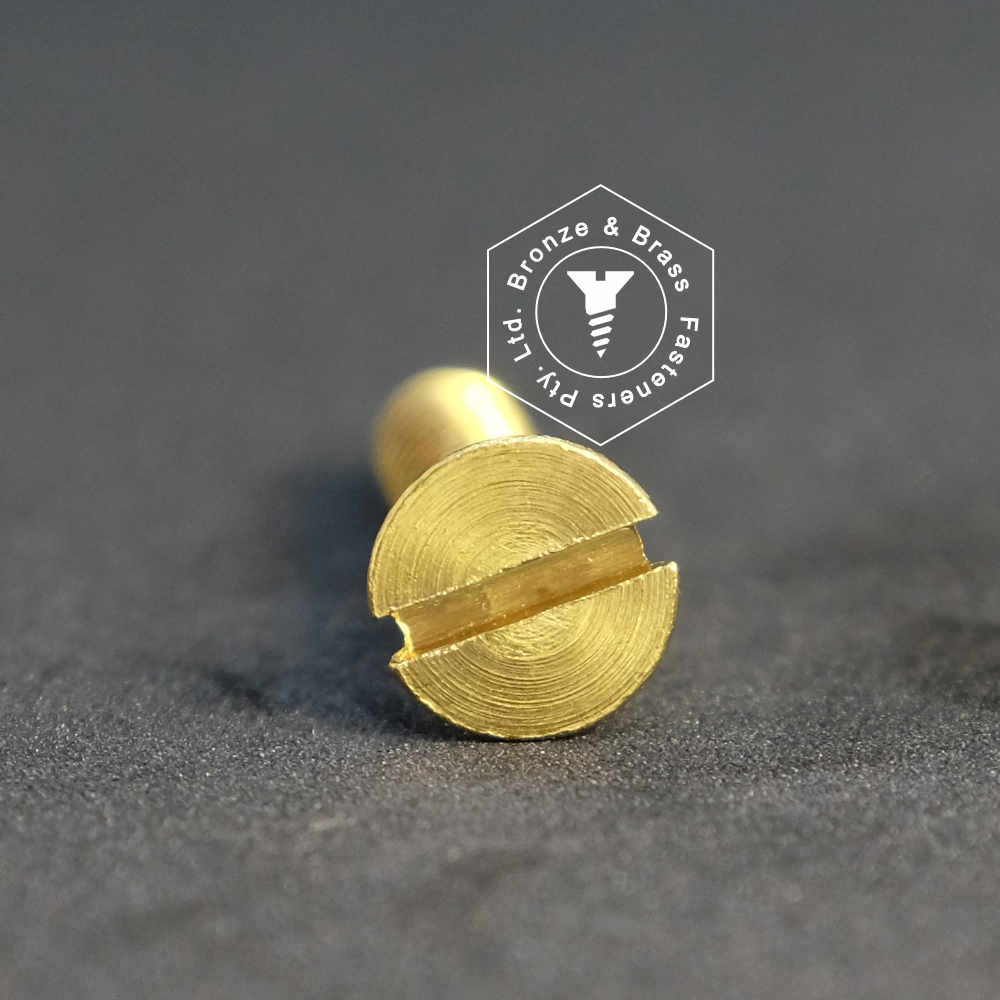

With deep well cut slots, these screws can be power driven with the correct size driver tip.
Needlepoint fine woodscrews are a fine rolled thread. When used in soft or composite timber products, they can be suitable for use without a pilot hole, particularly in shorter screws. It is recommended that you test the fastener in your material, as even our high tensile brass, when over torqued can easily break.
This is a woodscrew, not a sheet metal screw.

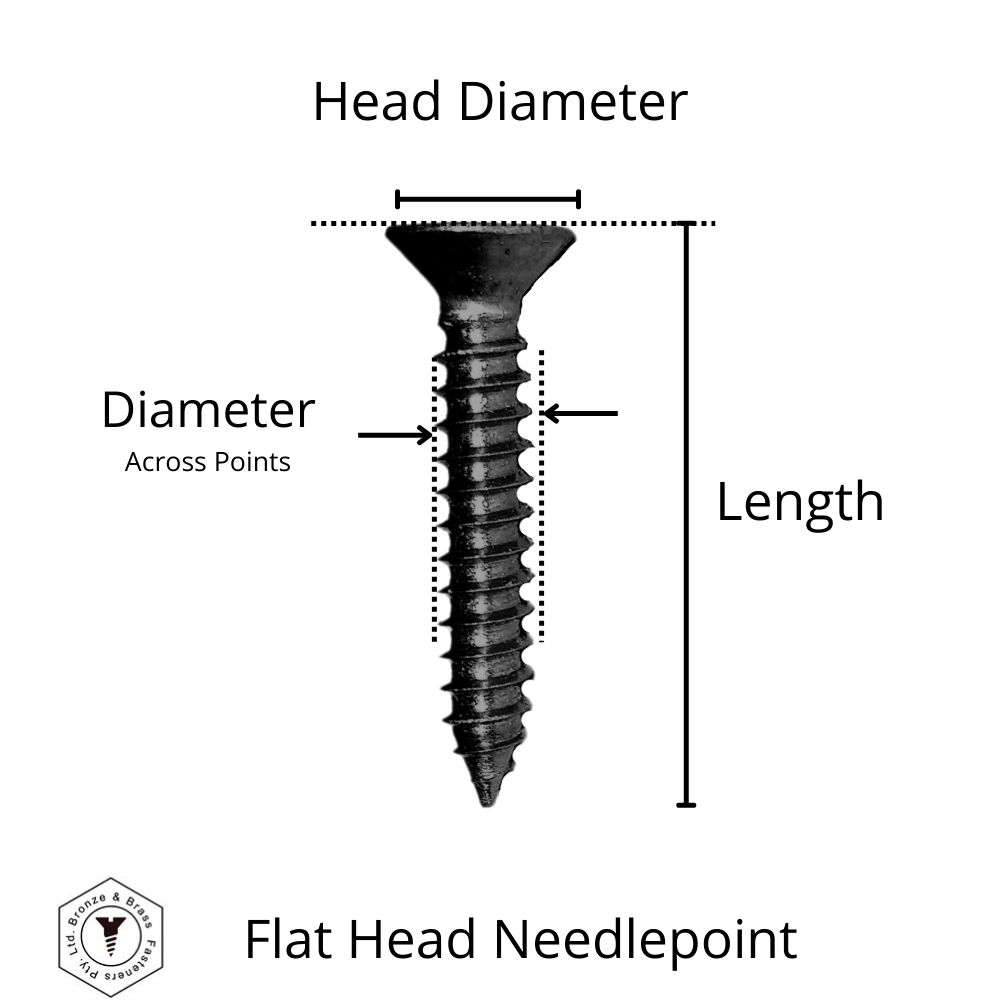

Screw Size Chart - Gauge: 10g
| Head Diameter: | 9mm |
| Head Height: | 3mm |
| Countersink Angle: | 82° |
| Shank Diameter: (outside thread) | 4.8mm |
| Shank Diameter: (minor) | 3.6mm |
| Finish: | Mill Finish |
| Material: | Solid Brass |
| Pilot Hole: | 3.5mm |
| Driver Size | 5/16" |
| Length: | 32mm |
Applications
| Fine Woodwork | Corrosion Resistance |
| Renovations |
Heritage Restoration |
| Joinery | Door Hinges |
| Cabinet Making | Building & Construction |
| Timber Furniture |
Non-magnetic |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
View full details
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
