133025 - Silicon Bronze Machine Screw Slotted Flat Head- 10 - 24 UNC (3/16") x 2"
133025 - Silicon Bronze Machine Screw Slotted Flat Head- 10 - 24 UNC (3/16") x 2"
Regular price
$0.89 AUD
Regular price
Sale price
$0.89 AUD
Unit price
per
GST Excluded - added at checkout
Quantity discounts are added automatically in cart.
Couldn't load pickup availability

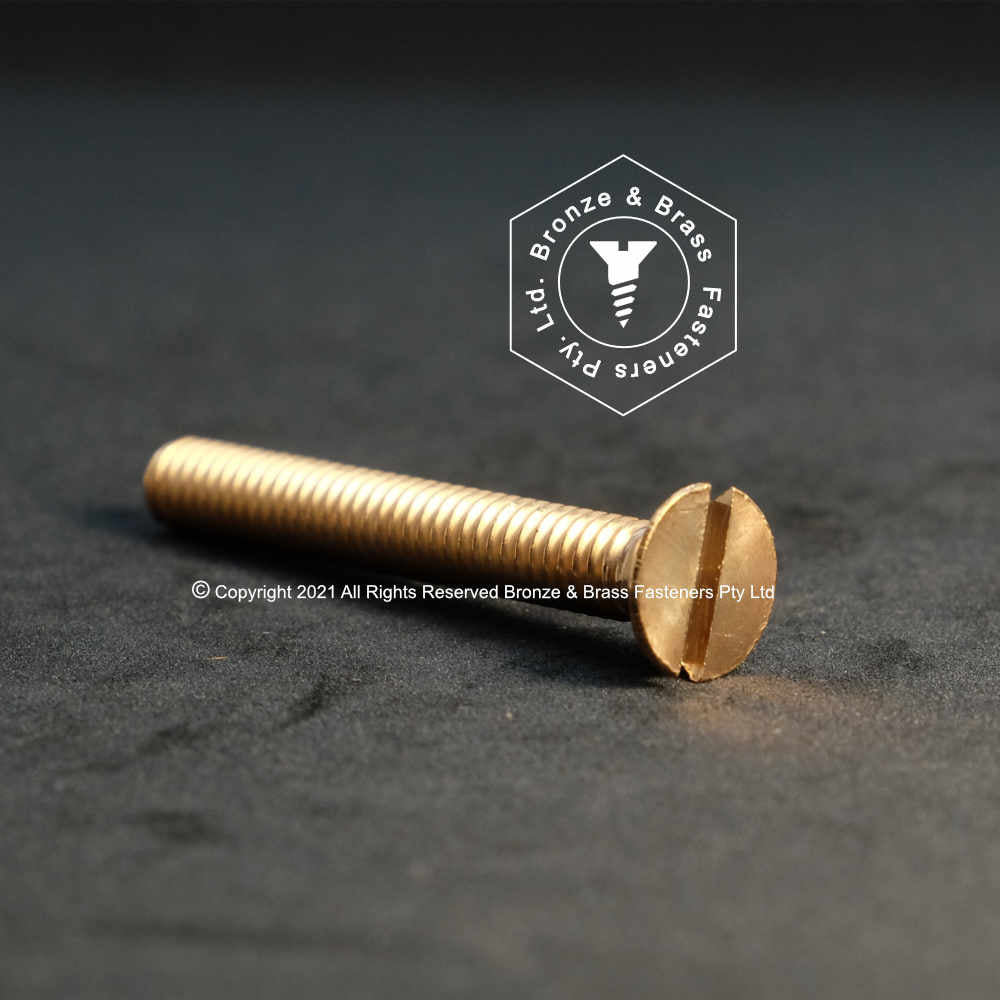

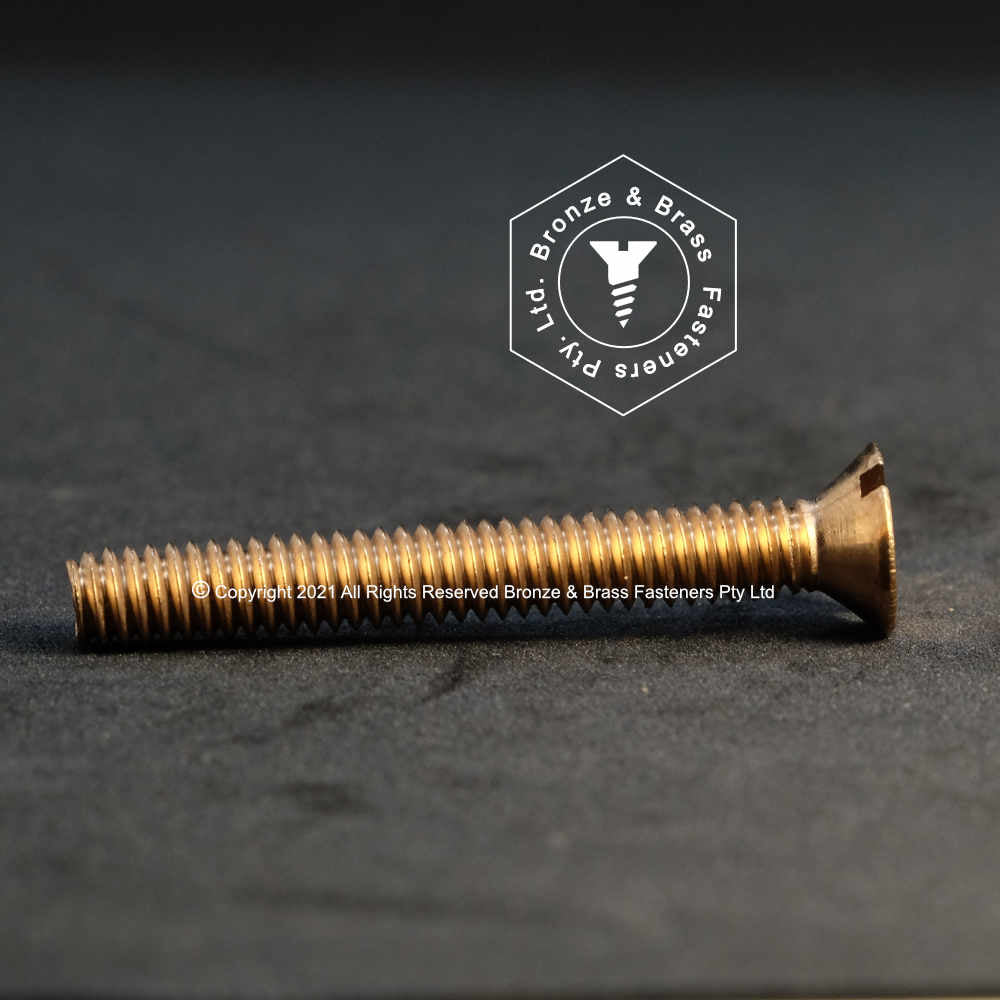

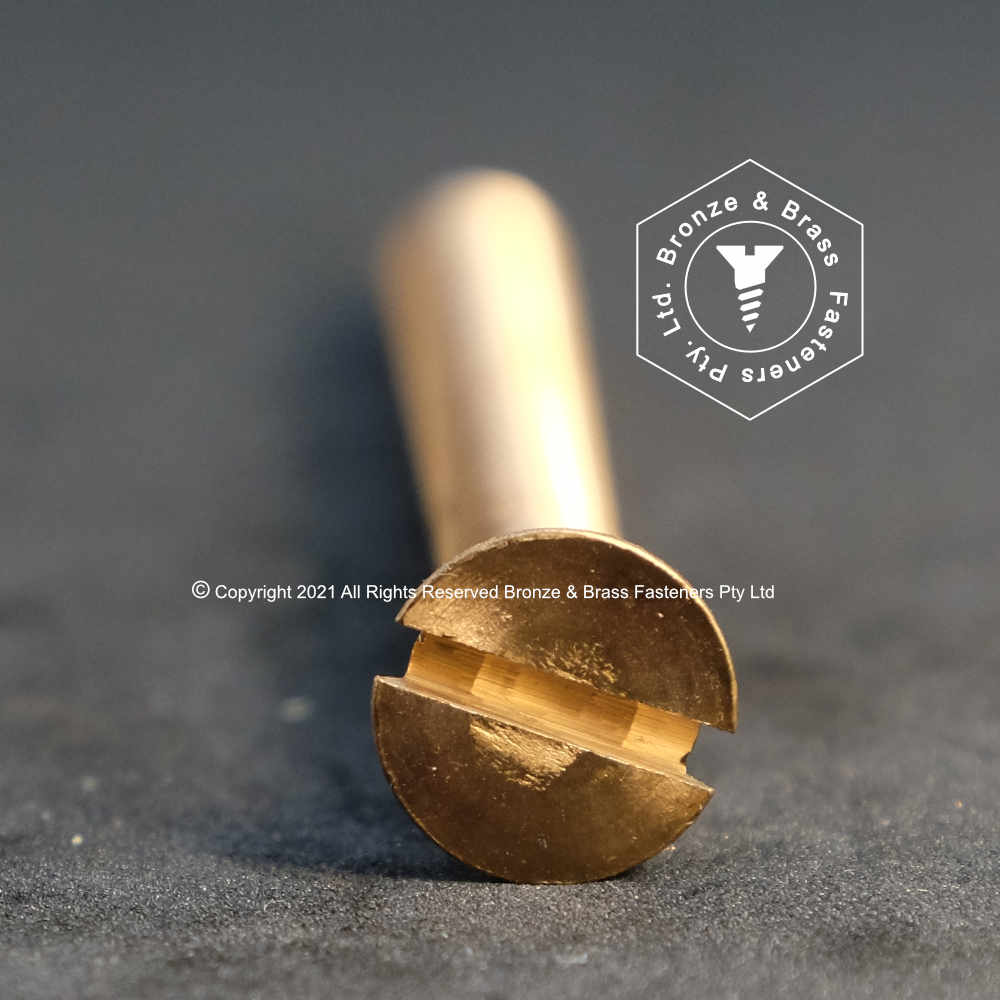

A countersunk metal thread machine screw with a traditional slot drive, that can either fastened with a nut and washer or into a female thread or component. With a flat
or countersunk head, these screws are designed to recess into the parent and finish flush with the surface.

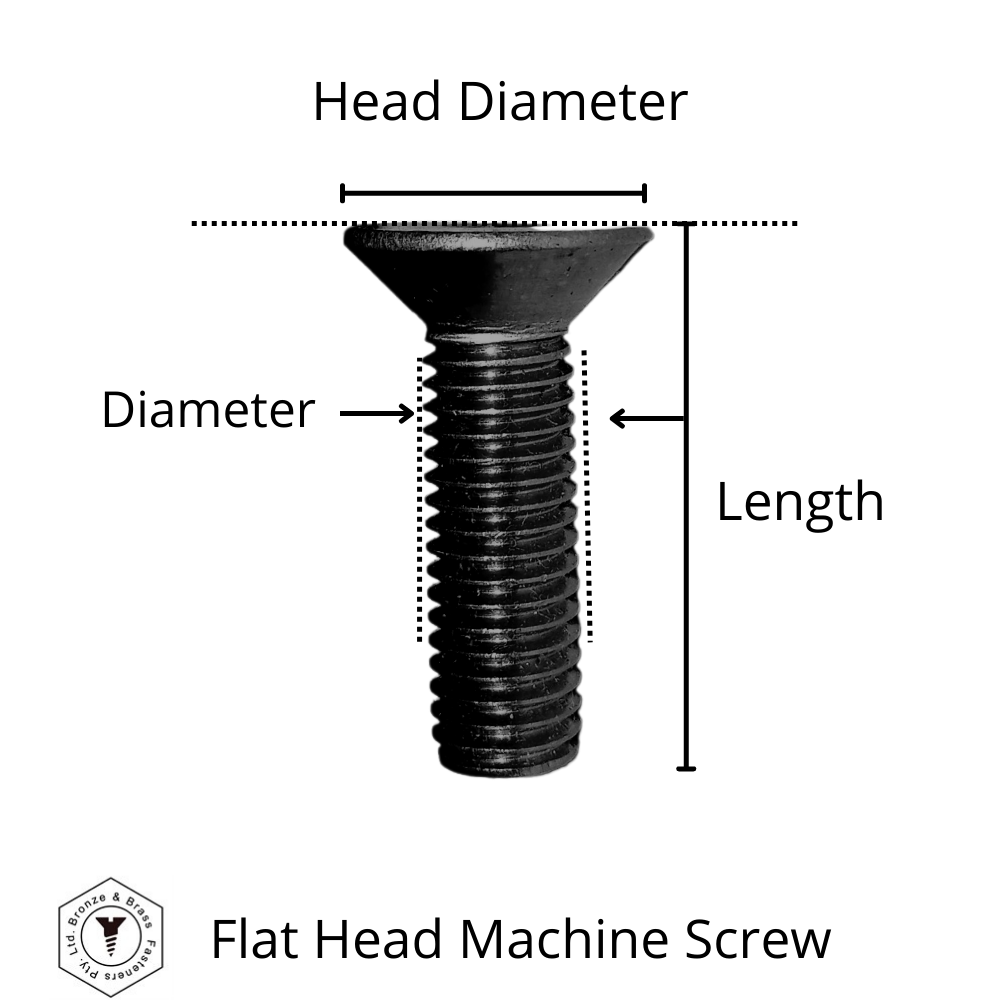

| Head Diameter | 9mm |
| Head Height | 3mm |
| TPI | 24 |
| BSW/Imperial | 3/16" |
| Major Diameter (outside thread) | 4.7mm |
| Countersink Angle | 80-82 degrees |
| Thread Length | Full Thread |
| Finish | Mill Finish |
| Material | Solid Silicon Bronze |
| Length | 50mm |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
View full details
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
