Bronze & Brass Fasteners Pty. Ltd.
133301 - Silicon Bronze Machine Screw Square Drive Flat Head- 1/4 - 20 UNC x 4" (T 50mm) (#3 Tip)
133301 - Silicon Bronze Machine Screw Square Drive Flat Head- 1/4 - 20 UNC x 4" (T 50mm) (#3 Tip)
Regular price
$3.42 AUD
Regular price
Sale price
$3.42 AUD
Unit price
per
GST Excluded - added at checkout
Quantity discounts are added automatically in cart.
Couldn't load pickup availability
A countersunk or flat metal thread machine screw that can either fastened with a nut and washer or into a female thread or component.

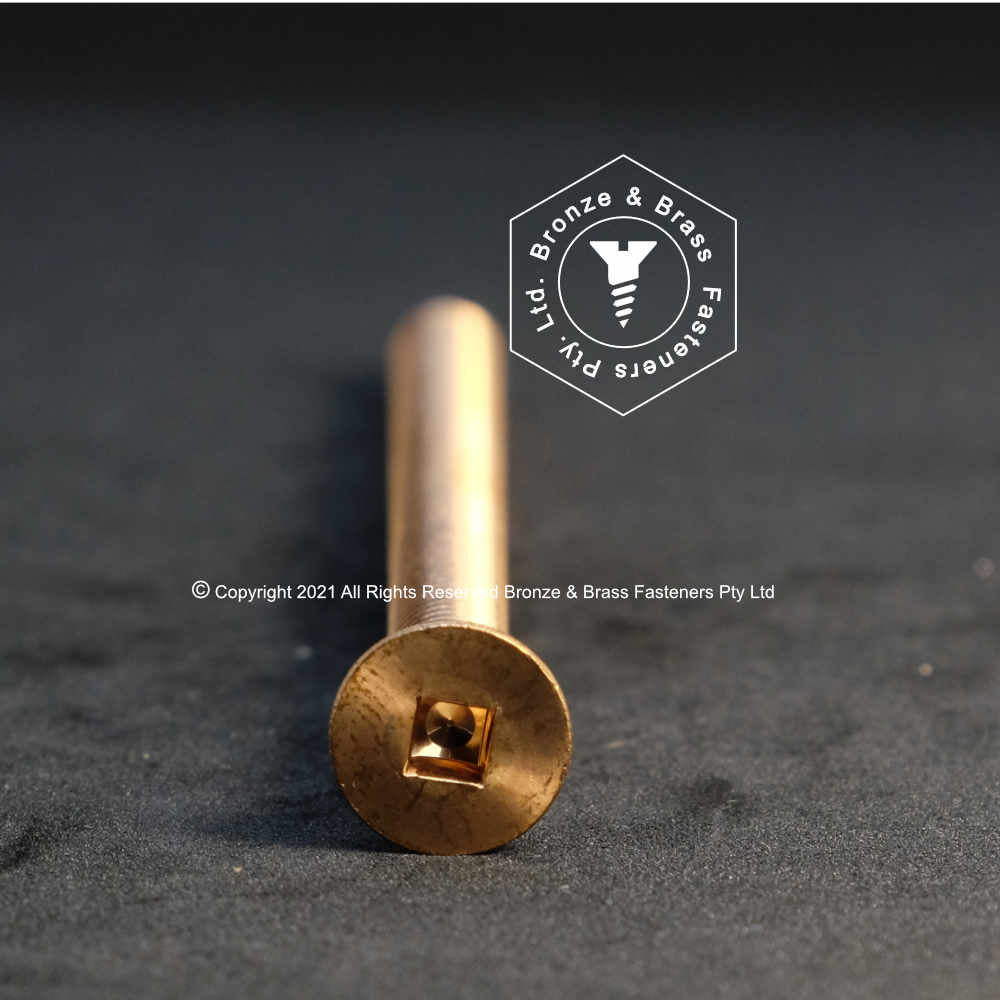

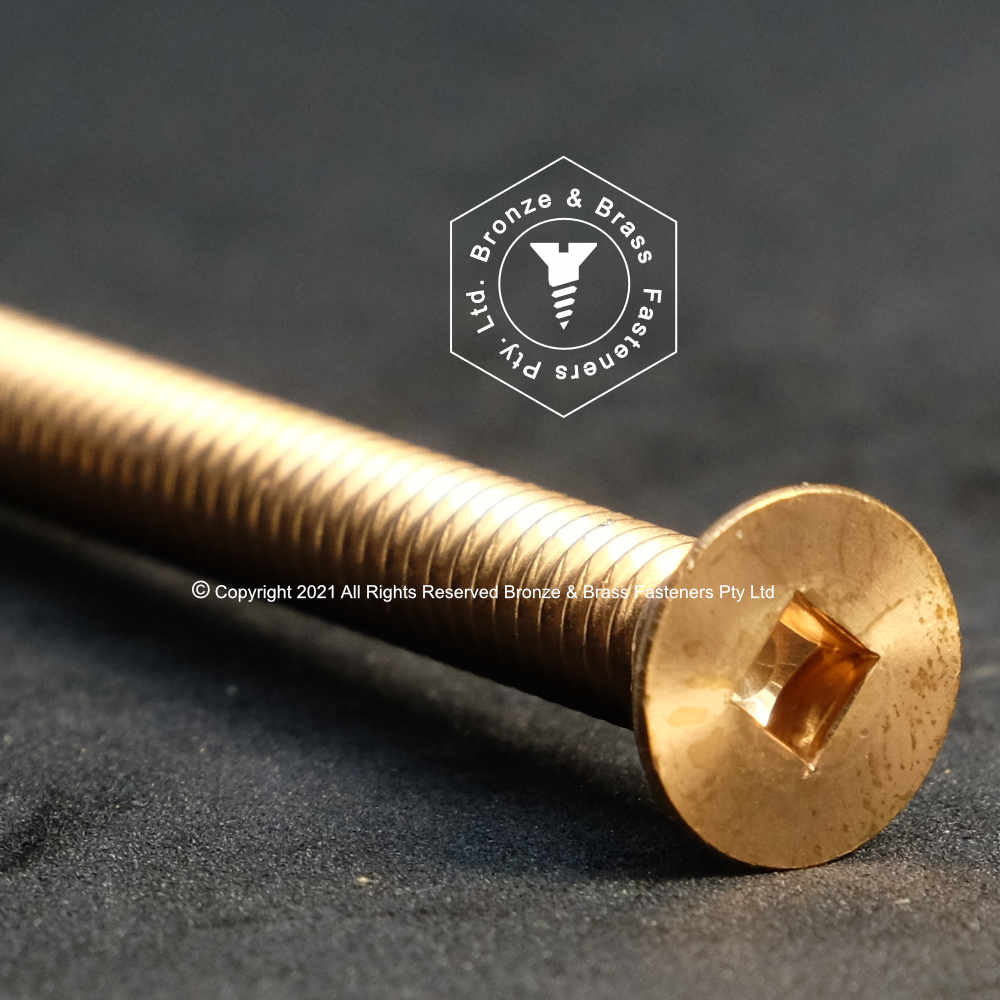

With a square drive, these screws have a positive drive engagement.

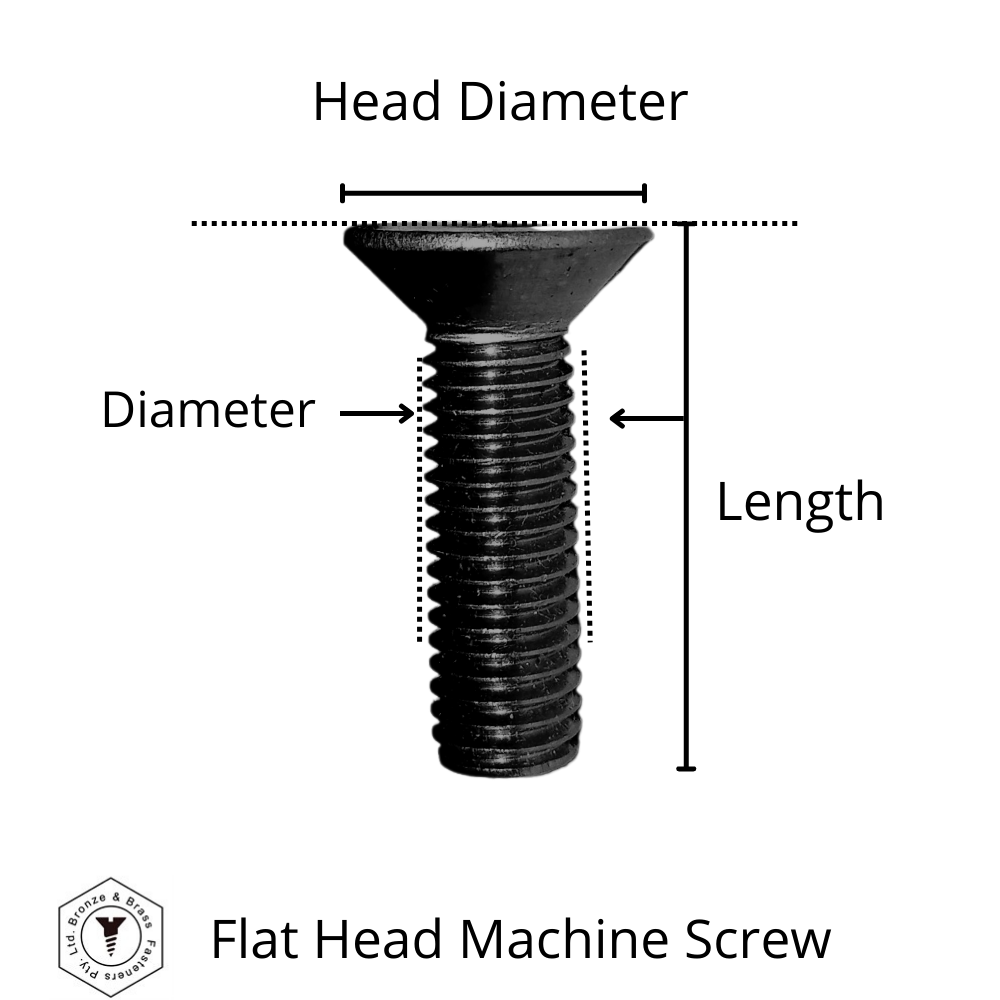

| Head Diameter | 11.7mm |
| Head Height | 4.3mm |
| Outside Thread Diameter | 6.25mm |
| Driver | #3 Robinson/Square |
| Countersink Angle | 90 degrees |
| TPI |
20 |
| BSW Compatible | 1/4-20 |
| Metric Equivalent | M6 |
| Thread Length | Full Thread |
| Finish | Mill Finish |
| Material | Solid Silicon Bronze |
| Length | 100mm |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
View full details
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
