133502 - Silicon Bronze Machine Screw Slotted Flat Head- M12-1.75 x 70mm (PT)
133502 - Silicon Bronze Machine Screw Slotted Flat Head- M12-1.75 x 70mm (PT)
Regular price
$12.71 AUD
Regular price
Sale price
$12.71 AUD
Unit price
per
Tax included.
Couldn't load pickup availability

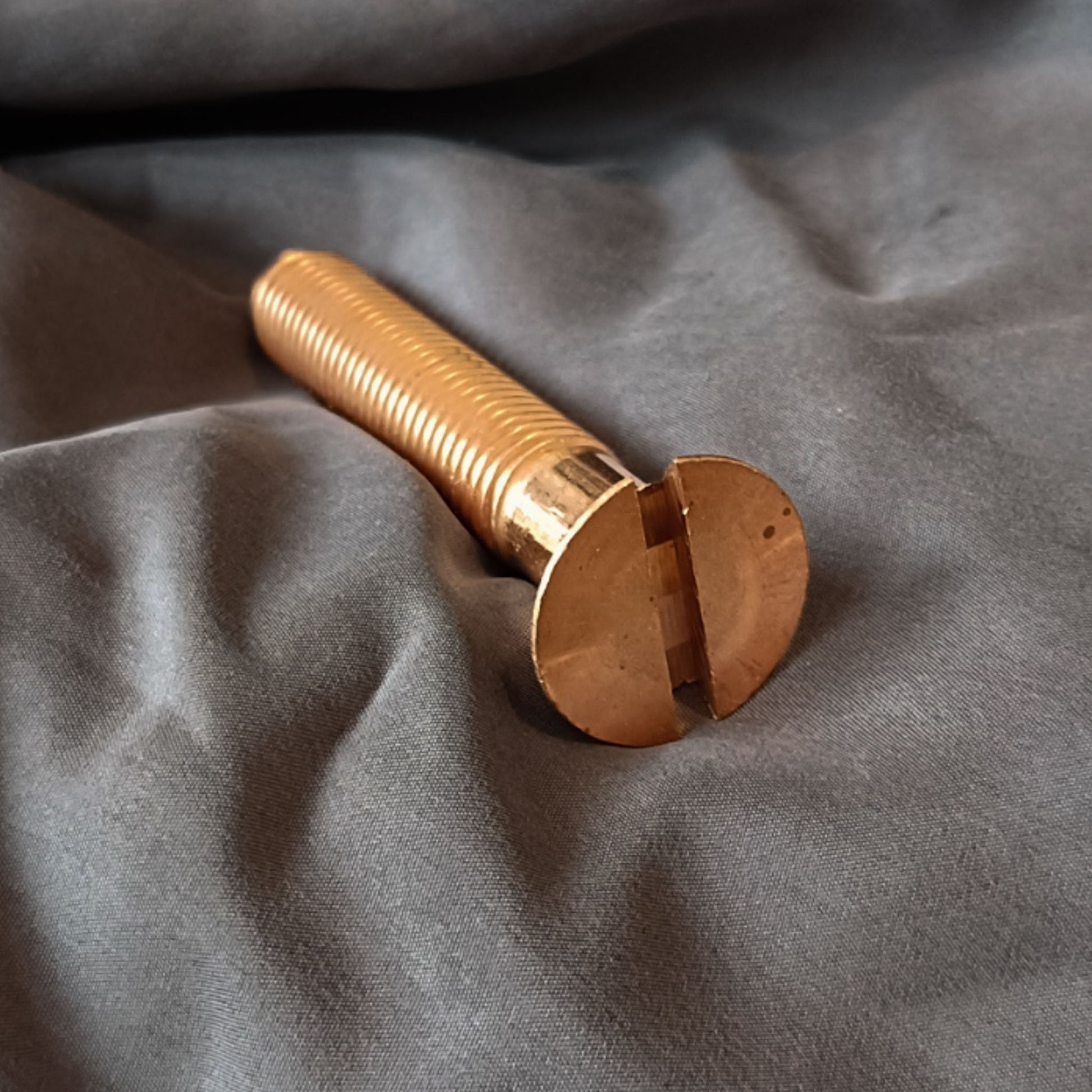

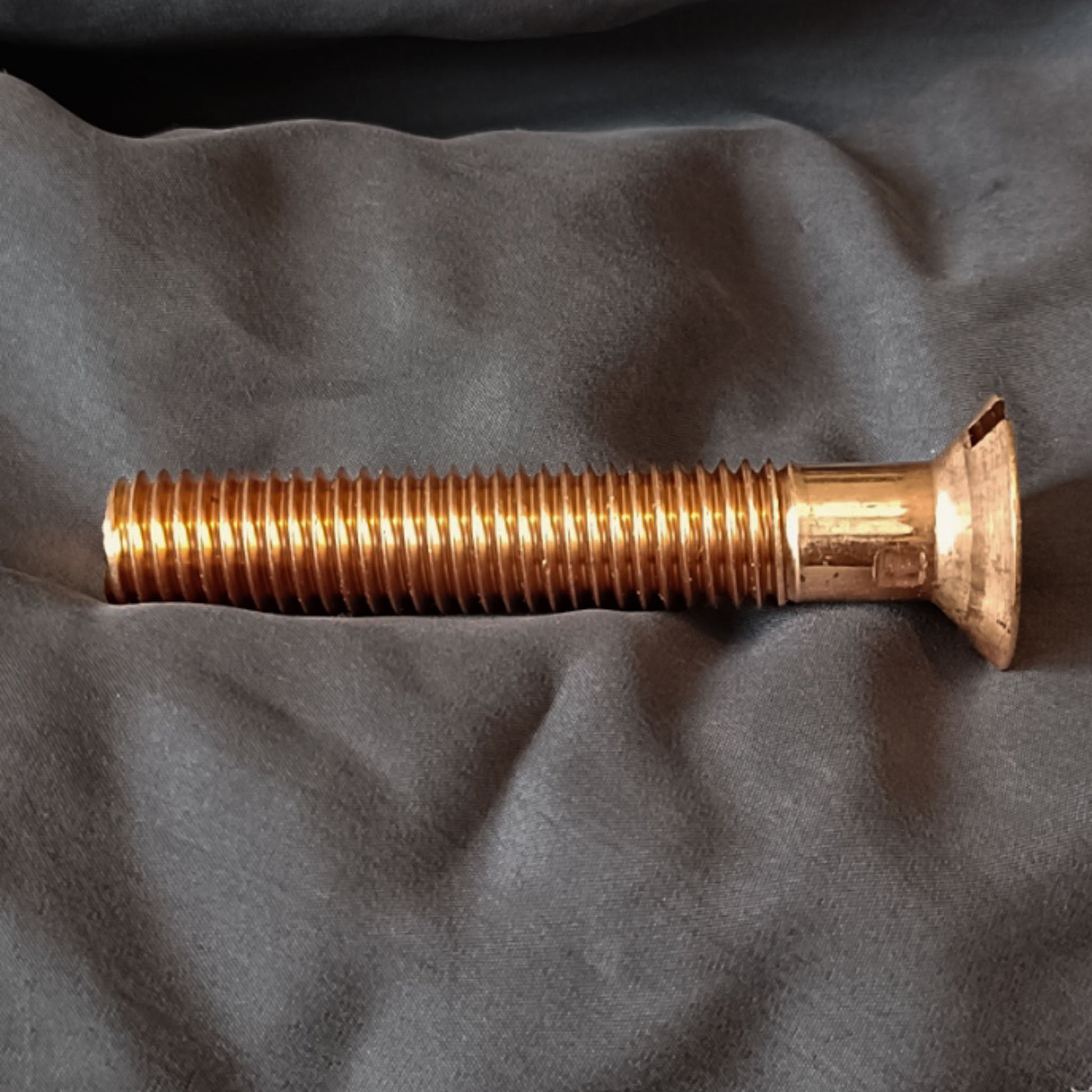

A countersunk metal thread machine screw with a traditional slot drive, that can either fastened with a nut and washer or into a female thread or component.
With a flat or countersunk head, these screws are designed to recess into the parent and finish flush with the surface.
Part rolled thread
Screw Size Chart
| Head Diameter | 21.7mm |
| Head Height | 10mm |
| Pitch | 1.75 |
| BSW/Imperial* | 1/2" |
| Major Diameter (outside thread) | 11.8mm |
| Plain Shank Diameter | 10.9mm |
| Countersink Angle | 90 degrees |
| Finish | Mill Finish |
| Material | Solid Silicon Bronze |
| Thread Length | 54mm |
| Length | 70mm |
*Equivalent size, incompatible thread, may be interchangeable
Applications
| Deck Winches | Crane Systems |
| Hydraulics | Brake Pads |
| Brake Winches | Slide Wear Pads |
| Drilling Rigs | Tug Boats |
| Electronics | Female threaded components |
| Marine | Wooden Boats |
| Aerospace | non-magnetic | non-sparking |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
