135751 - Silicon Bronze Hanger Bolt (Lag Screw)- 3/8 - 16 UNC x 5"
135751 - Silicon Bronze Hanger Bolt (Lag Screw)- 3/8 - 16 UNC x 5"
Regular price
$24.18 AUD
Regular price
Sale price
$24.18 AUD
Unit price
per
Tax included.
Couldn't load pickup availability

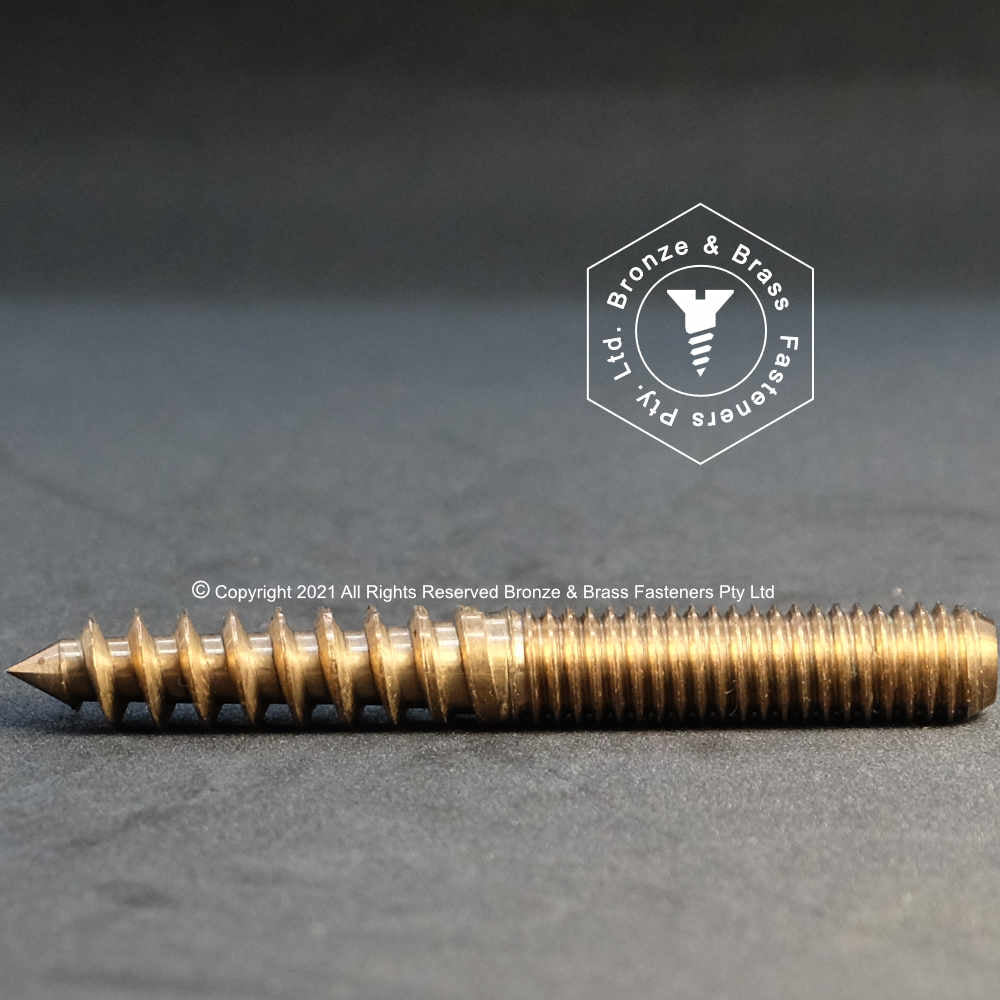

A hangar bolt or lag screw is a large silicon bronze timber woodscrew and machine screw. Nominally half timber and half machine thread, they are designed to be fastened in to timber with additional hardware fastened with a nut and washer or threaded component

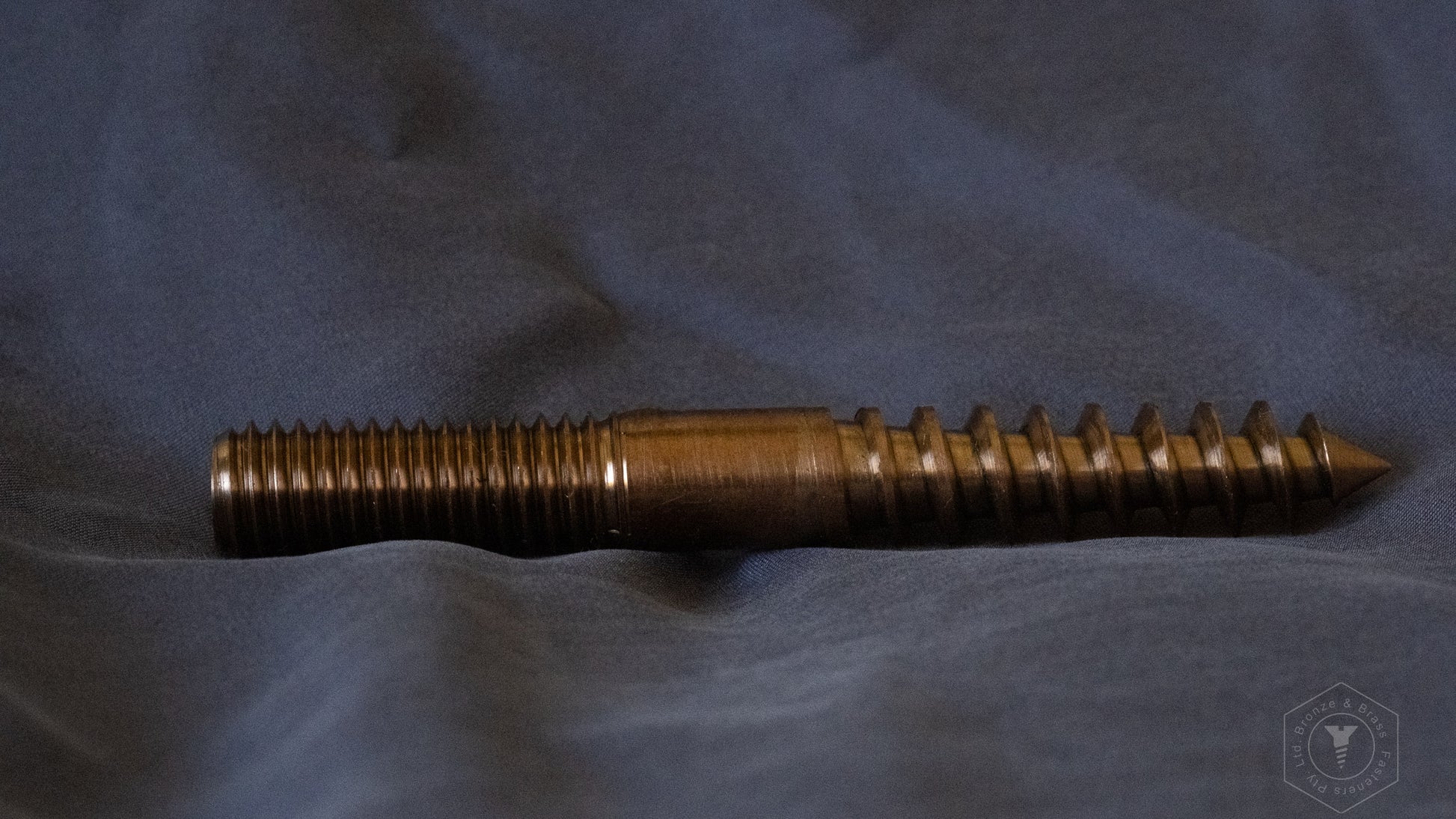

This product has a section of plain shank between the threads.
Ideally suited for marine engine mounts and propellor shaft bearings.
Please note nuts and washers are sold separately.
| Plain shank Diameter: | 9.3mm |
| Plain shank Length: | 12mm |
| Machine Outside Thread Diameter: | 9.2mm |
| Machine Thread Length: | 50mm |
| Threads per inch (TPI) | 16 |
| Material: | Solid Silicon Bronze |
| Woodscrew Major Diameter: | 9mm |
| Woodscrew Minor Diameter: | 4.6mm |
| Woodscrew length: | 63mm |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
