135819 - Silicon Bronze Coach Bolt- 5/16 - 18 UNC x 4 1/2"
135819 - Silicon Bronze Coach Bolt- 5/16 - 18 UNC x 4 1/2"
GST Excluded - added at checkout
Quantity discounts are added automatically in cart.
Couldn't load pickup availability

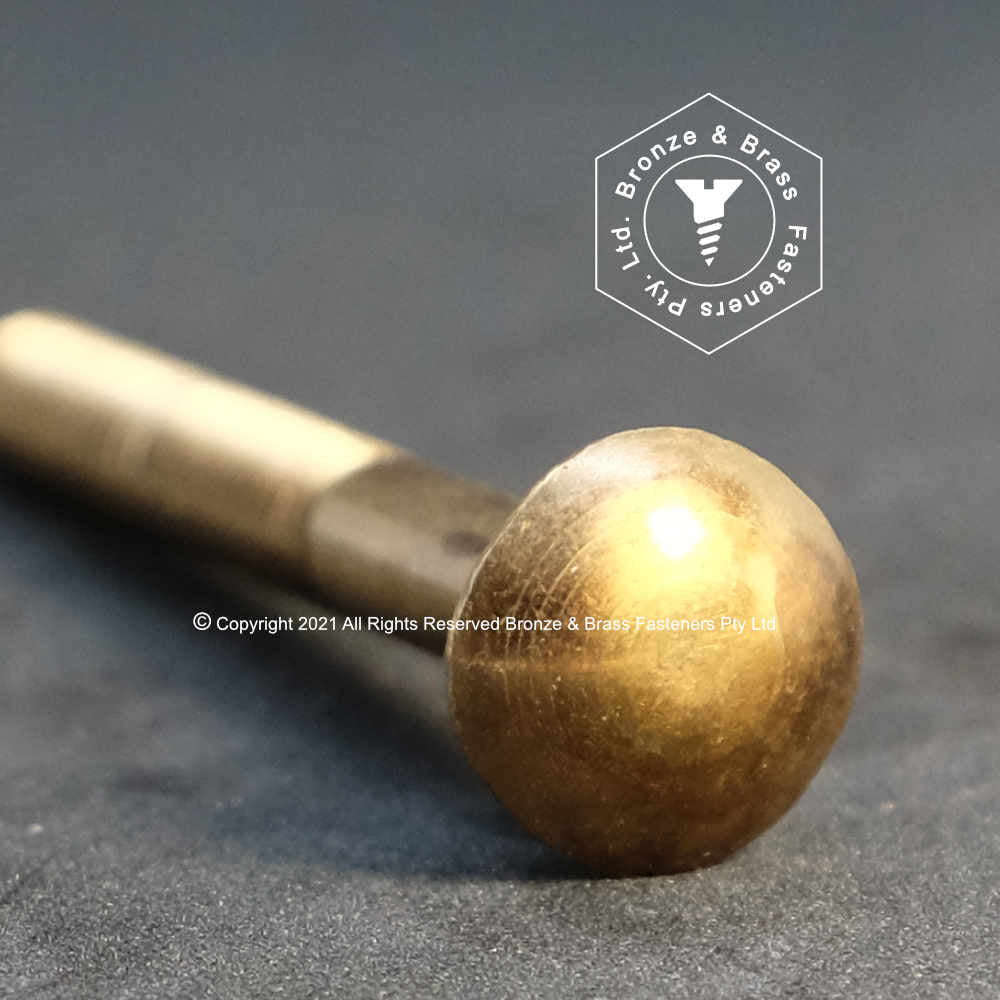

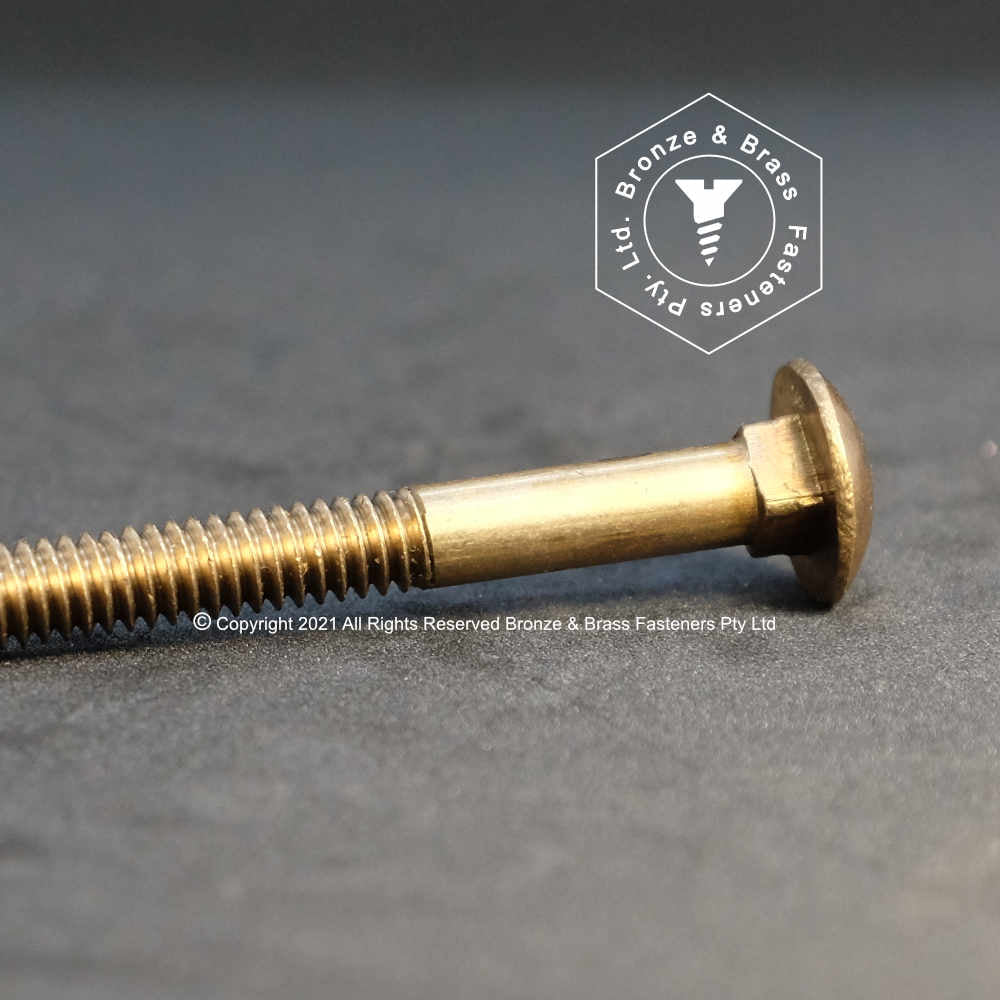

Coach or cup head bolts are traditionally a timber fastening. They have a smooth dome head – this makes them suitable to use in floors, steps or high traffic areas where a smooth finish is critical, or in outdoor furniture, raised garden beds, timber gates and fences, marine boat building and decks and docks.. The square under head is designed to ‘lock’ the bolt in place in a round hole to enable tightening with a nut and washer.
Nuts and washers are sold separately. (see product range below)

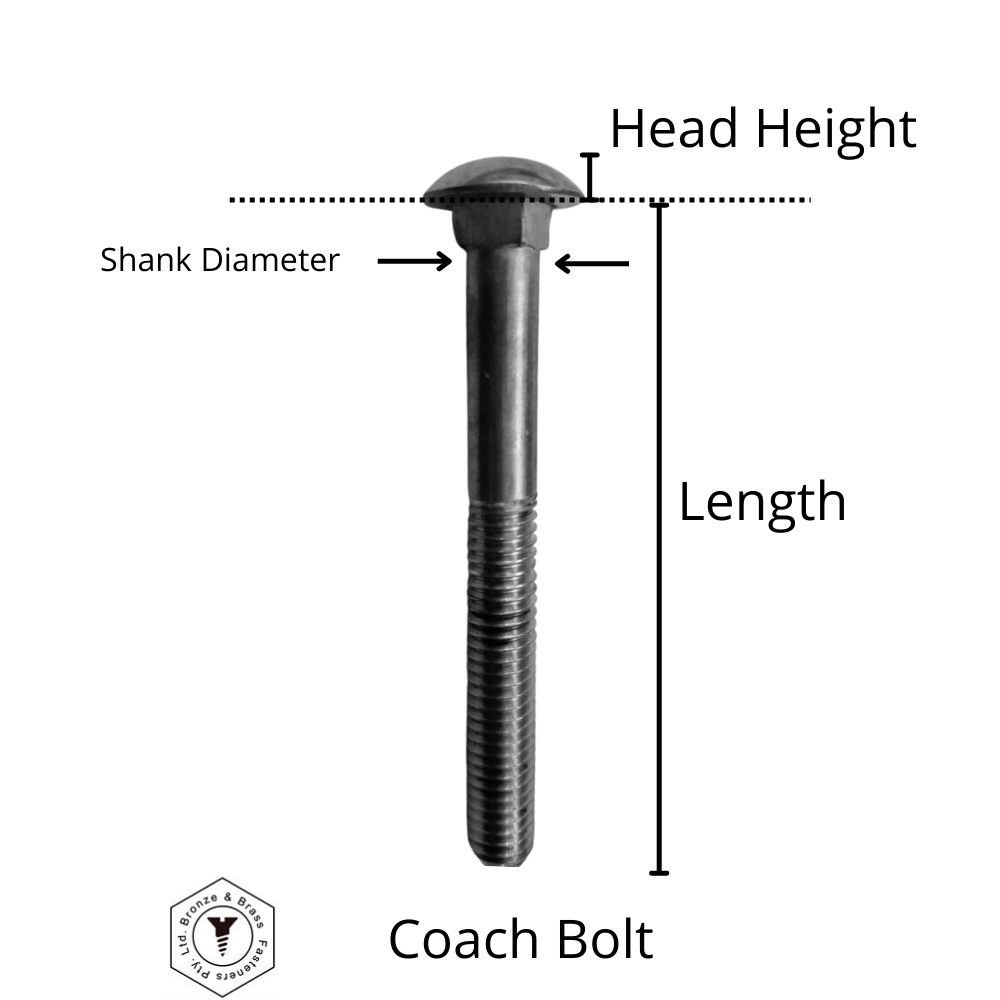

| Head Diameter | 17mm |
| Head Height | 4.3mm |
| Shank Diameter (plain under head) | 7.9mm |
| Thread Length | 70mm |
| TPI | 18 |
| Metric Equivalent | M8 |
| Finish | Mill Finish |
| Material | Solid Silicon Bronze |
| Length | 115mm |
Manufactured for Bronze and Brass Fasteners Pty Ltd by Yushung Metal Products Co., Ltd.
View full details
All images are of the product type, not the specific size. Colours may vary depending on your display, and on the age of the product.
